BRP Rubber Mounted Scotts Stabilizer SUB Mount for KTM 690 Enduro R
The BRP Rubber Mounted SUB “Scotts Under Bar” Adapter uses (8) Poly-Urethane bushings to isolate vibration and reduce rider fatigue by softening the harsh spike of hitting square edge rocks and obstacles.

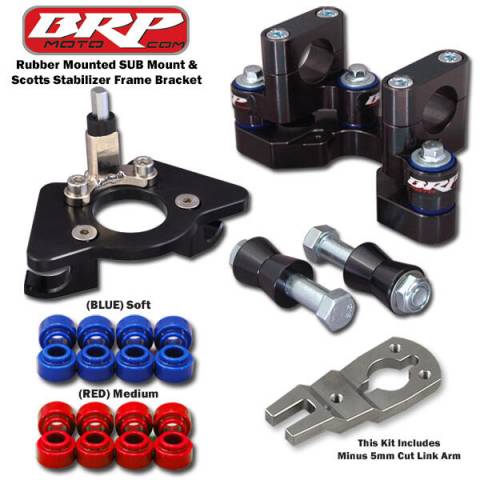

BRP Rubber SUB Mount 19-25 KTM 690 Enduro R INCLUDES:
- 1) BRP Rubber Mounted SUB Adapter RSA-902406
- 2) Sets of Rubber Bushings (Red = Medium and Blue = Soft.)
- 4) Aluminum Cones & All Necessary Hardware
- 1) Frame Bracket (tower) FBD-3529
- 1) SRP-4032-35 (Minus 5mm Cut Link Arm (preinstalled in the DS kit with stabilizer))
Designed to mount a Scotts stabilizer below the handlebar using your OEM cast or billet triple clamp. The BRP Rubber Mounted SUB adapter mounts to the existing rear bar mount holes and allows you to run in position 3 which is the most common and popular position.
SUB Mounting a stabilizer offers several benefits over a conventional “above bar” setup and is becoming a very popular setup for GP’s, motocross, off road, dual sport applications and riders of taller stature.
- This Kit Raises the handlebars 15mm taller than stock and puts the bars at 21mm in front of the steering stem (which is the stock bar position)
- Lower Bend Bars can be used to compensate for additional height.
- SUB Mounting reduces the risk of bodily injury
- Stabilizer is tucked away and protected from potential damage from a crash.
SPECIAL NOTES:
Be sure to select the proper year, model and triple clamp in order to get the correct part for your order. When running a stabilizer in the sub mount configuration, the stabilizer link arm will need to be reverse mounted “going under the body of the unit”. To reverse the link arm we recommend using a Scotts Link Arm Puller.
This unit cannot be used with Cycra center reach mount (CRM) handguards.
- Brand: BRP
-
